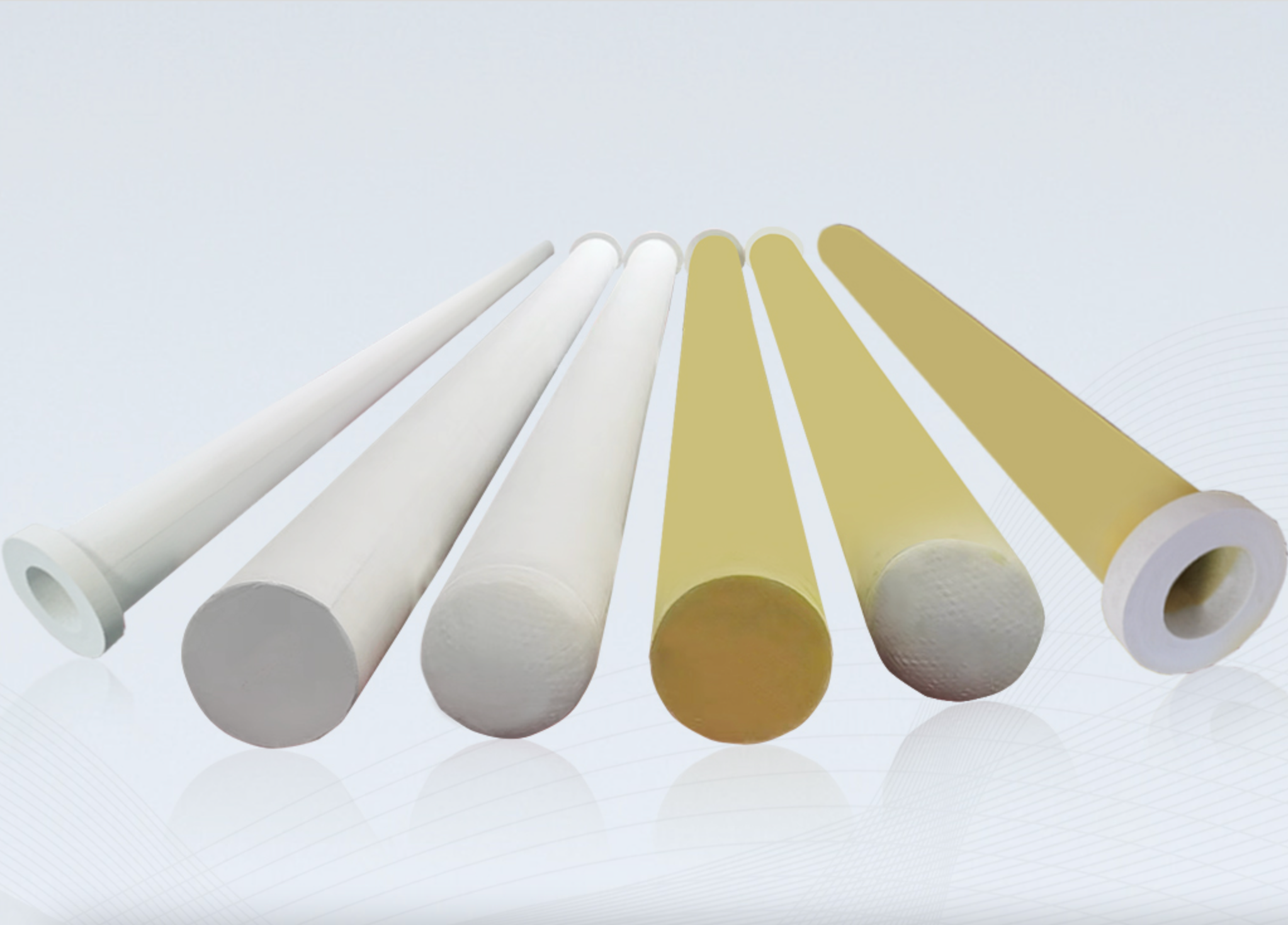

Ceramic Fiber Tube

High-temperature dust removal, ultra-low emission

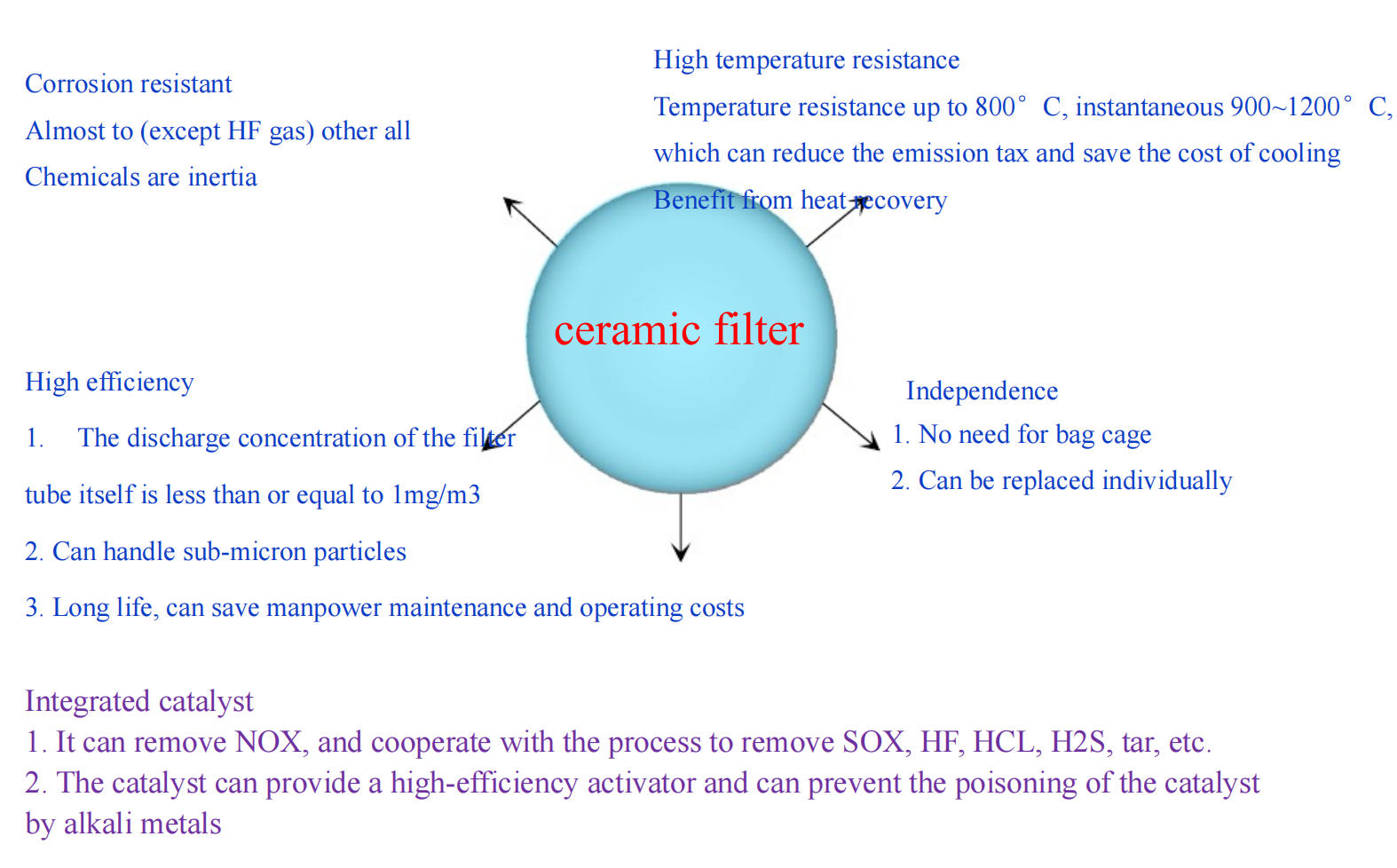

1. High application temperature and wide temperature range
2. The filter tube itself has low dust emission and ultra-low emission standards
Double action, high denitrification efficiency
1. The dust removal pipe is implanted with a denitrification catalyst, which has the integrated function of dust removal and denitrification
2. Working temperature of denitrification: 250~400℃, ammonium sulfate ≥280℃
3. High denitrification efficiency, one-time ultra-low emission
4. Long service life: surface filtration reduces the risk of alkali metal poisoning
Auxiliary (secondary) desulfurization
1. There is a dust layer on the surface of the filter tube
2. The main components of the dust layer are smoke, sulfide, sulfide, and desulfurization powder
3. Desulfurization powder: the surface of the filter tube can perform secondary desulfurization
Working principle of ceramic fiber filter tube
1. Cooperate with the dry process to carry out desulfurization and deacidification and flue gas conditioning and tempering.
2. The flue gas dust is blocked on the surface of the filter tube, and the filter cake layer on the surface of the filter tube can perform the secondary desulfurization work.
3. When the clean flue gas passes through the wall of the filter tube, under the action of the catalyst, NOx and NH3 undergo a chemical reaction and are converted into N2.
4. The purified gas enters the clean air chamber and is discharged by the fan.
5. When the dust is deposited on the surface of the filter tube to a certain value, the compressed air pulses to clean the filter tube.
