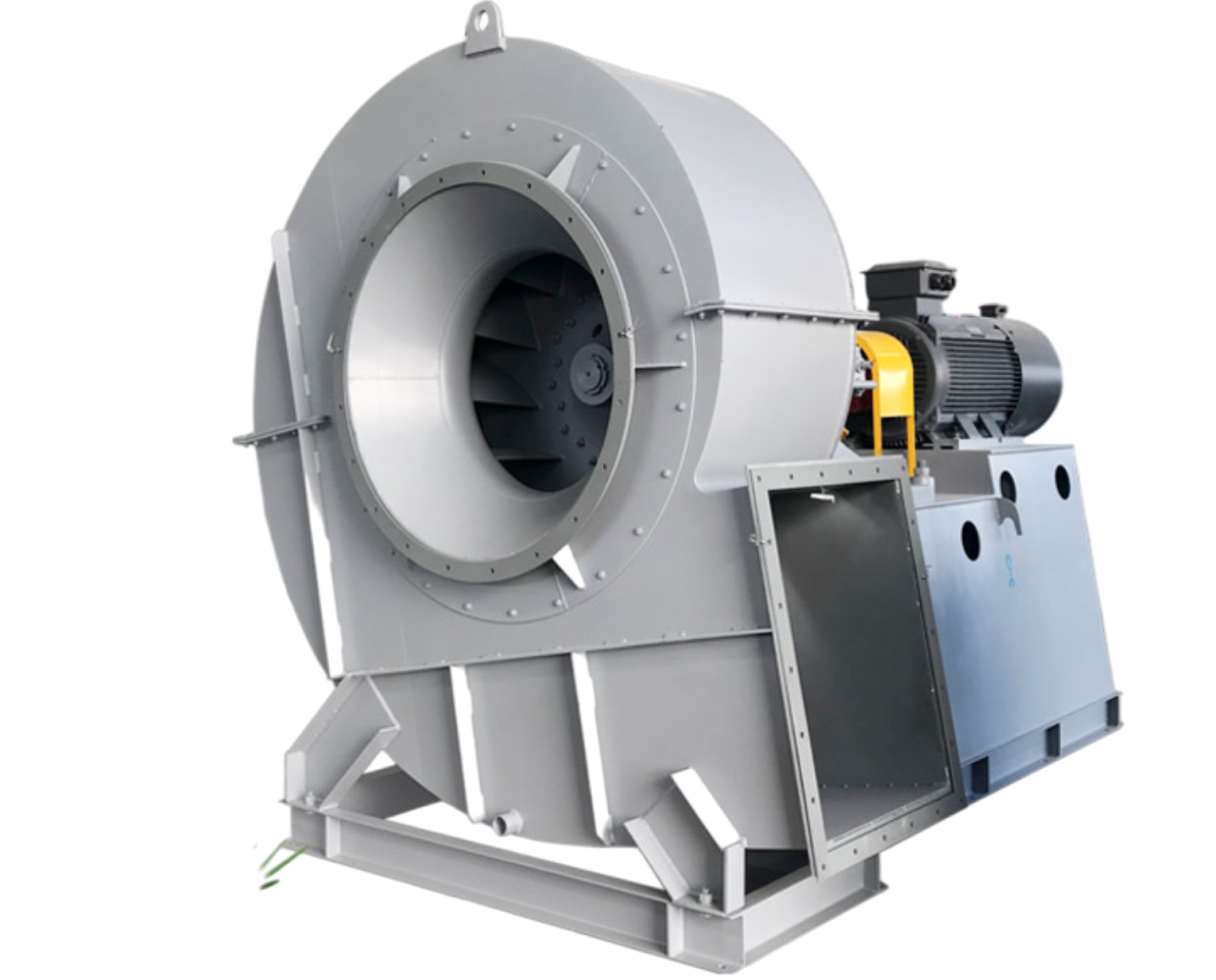

6-51 Series Centrifugal Fan

The 6-51 boiler draft fan is mainly used for the draft fan system of 2t/h~670t/h steam boilers in thermal power plants, and it also meets the requirements of the performance parameters of the high-pressure head of the fluidized bed furnace. This series of fans can also be used for dust removal, mine ventilation and general ventilation systems. The medium conveyed by the blower is air, and the medium conveyed by the induced draft fan is flue gas or gas containing impurity particles. When the impurity concentration is less than 200mg/m3, it can be used for more than four years. It can also be used if the impurities are large, but the service life is relatively shortened. The temperature used by the draft fan should not exceed 250°C. And has the characteristics of high efficiency and low noise, it is a centrifugal fan product series with a wide range of performance.
Air volume range: 2752-498507㎥/h
Wind pressure range: 1706-8265Pa
Drive mode: direct connection (D)
Machine number: 800#～2950#
Direction angle: It can be made clockwise or counterclockwise, and can be made into six angles of 0°, 45°, 90°, 135°, 180°, and 270°.
Application: It is suitable for the blasting system of thermal power plants and general steam boilers or the conventional ventilation of mines. Type D with cooling impeller or water cooling is suitable for baking furnaces, drying furnaces and high temperature gas circulation in high temperature environments, 0.2-20t/h industrial boilers with various coal qualities and equipped with smoke and dust removal devices, waste incineration , glass machinery, asphalt mixing machinery and other ventilation and induced draft dust removal devices. GYDHF-51 can be made into explosion-proof type (BGYDHF-51)
